ADC(Pipeline)
ADC(Pipeline)
The Pipeline high-speed ADC (analog-to-digital converter) is a common ADC design that employs a Pipeline structure as the core component.Pipeline ADCs excel in high-speed, high-precision data conversion, and therefore have a wide range of applications in communications, measurement, imaging, and other fields.
| Product | Part Number | PIN TO PIN | Descriptive | Package | Datasheet |
|---|---|---|---|---|---|
 |
GX204P50 | ISLA204P50 | Resolution：14；Sample rate：500MSPS；Number of input channels：1；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN72 | / |
 |
GX9011 | LTC9011 | Resolution：14；Sample rate：125MSPS；Number of input channels：8；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | BGA140 | / |
|

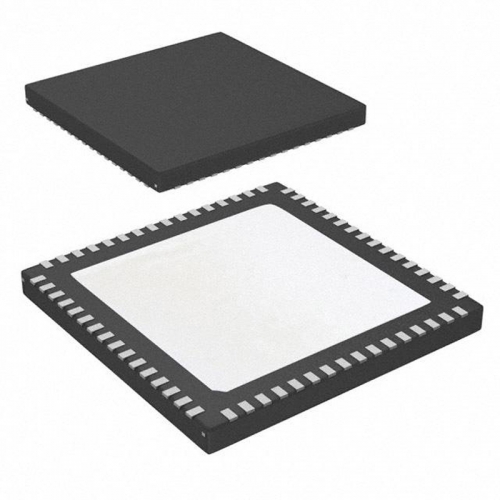

GX9269 | AD9269 | Resolution：16；Sample rate：125MSPS；Number of input channels：4；Input type：Descriptive；DVDD：1.8V；Interface：LVDS/CMOS | QFN-64 | / |
 |

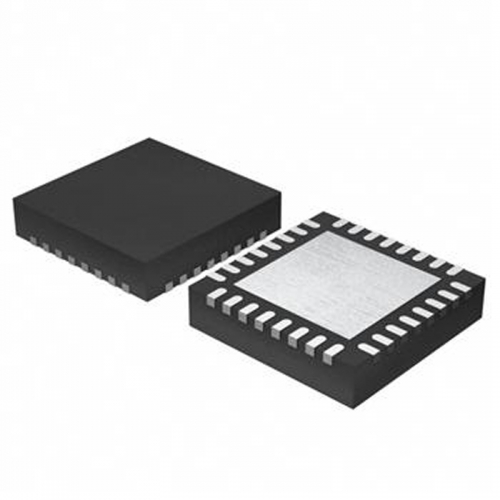

GX9215 | AD9215 | Resolution：10；Sample rate：105MSPS；Number of input channels：1；Input type：Descriptive；DVDD：3V；Interface：CMOS | QFN-32 | / |
|
GX08200 | ADC08200 | Resolution：8；Sample rate：1GSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN48 | / |
 |

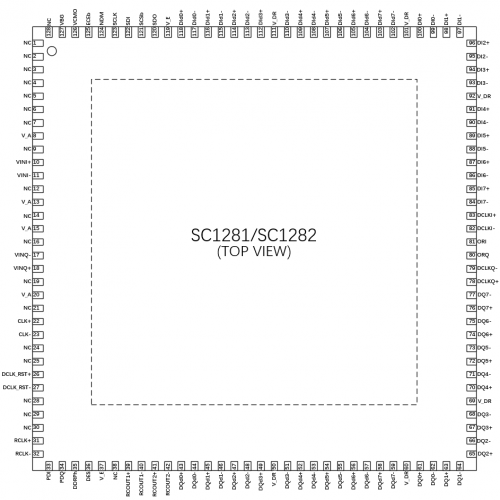

GX08D1000 | ADC08D1000 | Resolution：8；Sample rate：1.5GSPS/3.0GSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.9V；Interface：LVDS | QFN-128 | / |
|

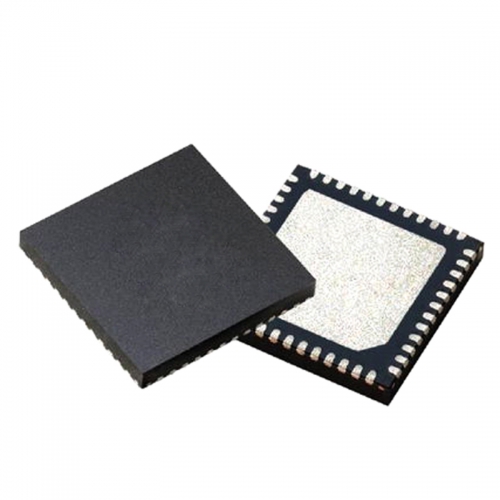

GX9653 | AD9653 | Resolution：8；Sample rate：1.0GSPS/2.0GSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.9V；Interface：LVDS | QFN-48 | / |
 |

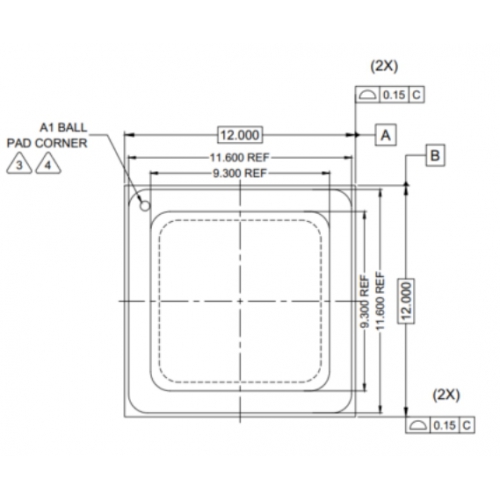

GX9208 | AD9208 | Resolution：14；Sample rate：3GSPS；Number of input channels：2；Input type：Descriptive；DVDD：0.975V/1.9V/2.5V；Interface：Serial Interface | FCBGA-196 | |
 |

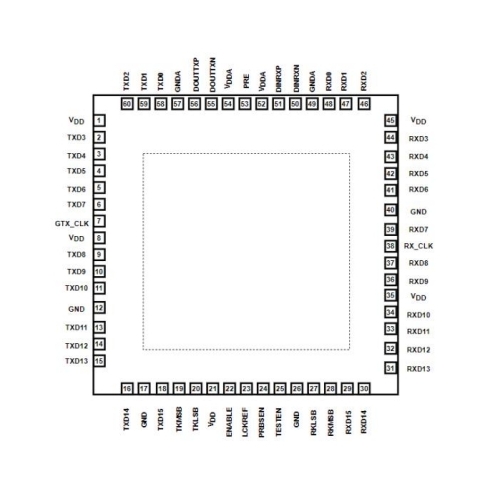

GX2711 | TLK2711 | 1.6Gbps to 3.2Gbps/serial interface/on-chip 8-bit to 10-bit/decode, K-code detection | QFN60 QFP60 | |
 |
GX9204BCPZ-20 | AD9204BCPZ-20 | Resolution：10；Sample rate：20MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9204BCPZ-40 | AD9204BCPZ-40 | Resolution：10；Sample rate：40MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9204BCPZ-65 | AD9204BCPZ-65 | Resolution：10；Sample rate：65MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9204BCPZ-80 | AD9204BCPZ-80 | Resolution：10；Sample rate：80MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9231BCPZ-20 | AD9231BCPZ-20 | Resolution：12；Sample rate：20MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9231BCPZ-40 | AD9231BCPZ-40 | Resolution：12；Sample rate：40MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9231BCPZ-80 | AD9231BCPZ-80 | Resolution：12；Sample rate：80MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9251BCPZ-20 | AD9251BCPZ-20 | Resolution：14；Sample rate：20MSPS；Number of input channels：2；Input type：Single-Ended；DVDD：1.8V；Interface：CMOS | QFN-64 | |
|
GX9251BCPZ-40 | AD9251BCPZ-40 | Resolution：14；Sample rate：40MSPS；Number of input channels：2；Input type：Single-Ended；DVDD：1.8V；Interface：CMOS | QFN-64 | |
|
GX9231BCPZ-65 | AD9231BCPZ-65 | Resolution：12；Sample rate：65MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：CMOS | QFN-64 | / |
|
GX9251BCPZ -65 | AD9251BCPZ -65 | Resolution：14；Sample rate：65MSPS；Number of input channels：2；Input type：Single-Ended；DVDD：1.8V；Interface：CMOS | QFN-64 | |
|
GX9251BCPZ-80 | AD9251BCPZ-80 | Resolution：14；Sample rate：80MSPS；Number of input channels：2；Input type：Single-Ended；DVDD：1.8V；Interface：CMOS | QFN-64 | |
 |
GX9633BCPZ-80 | AD9633BCPZ-80 | Resolution：12；Sample rate：80MSPS；Number of input channels：4；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN-48 | / |
|
GX9633BCPZ-100 | AD9633BCPZ-100 | Resolution：12；Sample rate：100MSPS；Number of input channels：4；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN-48 | / |
|
GX9633BCPZ-110 | AD9633BCPZ-110 | Resolution：12；Sample rate：110MSPS；Number of input channels：4；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN-48 | / |
|
GX9253BCPZ-80 | AD9253BCPZ-80 | Resolution：14；Sample rate：80MSPS；Number of input channels：4；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN-48 | |
|
GX9253BCPZ-100 | AD9253BCPZ-100 | Resolution：14；Sample rate：100MSPS；Number of input channels：4；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN-48 | |
|
GX9253BCPZ-110 | AD9253BCPZ-110 | Resolution：14；Sample rate：110MSPS；Number of input channels：4；Input type：Descriptive；DVDD：1.8V；Interface：LVDS | QFN-48 | |
 |
GX2245-10 | LTC2245IUH#PBF | Resolution：14；Sample rate：10MSPS；Number of input channels：4；Input type：Descriptive；DVDD：3V；Interface：LVDS | QFN-32 | / |
|
GX2245-25 | LTC2246IUH#PBF | Resolution：14；Sample rate：25MSPS；Number of input channels：4；Input type：Descriptive；DVDD：3V；Interface：LVDS | QFN-32 | / |
|
GX9258BCPZ-125 | AD9258BCPZ-125 | Resolution：14；Sample rate：125MSPS；Number of input channels：2；Input type：Descriptive；DVDD：1.8V；Interface：LVDS/CMOS | QFN-64 |
