General Purpose ICs
General Purpose ICs
74 Logic class chips are a common class of digital integrated circuits that utilize TTL (Transistor-Transistor Logic) technology and are commonly used in digital circuits such as logic gates, flip-flops, counters, and other digital circuits. These chips use 74 as the naming prefix of the series, such as 74LS00, 74HC04, etc., and are the basic components in digital circuit design.
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
 |

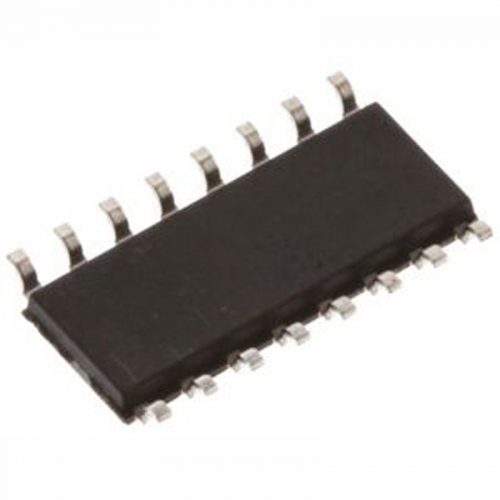

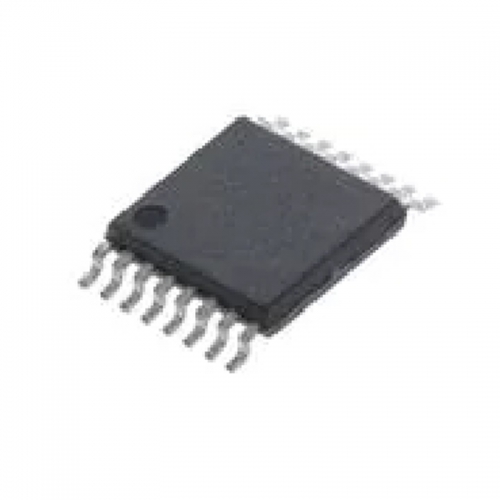

AiP74HC42 AiP74HCT42 | SN74HC42 SN74HCT42 | BCD tO Decimal DecOder (1-Of-10) | HC:2.0-6.0V HCT:4.5-5.5V | DIP16 TSSOP16 SOP16 | / |
 |

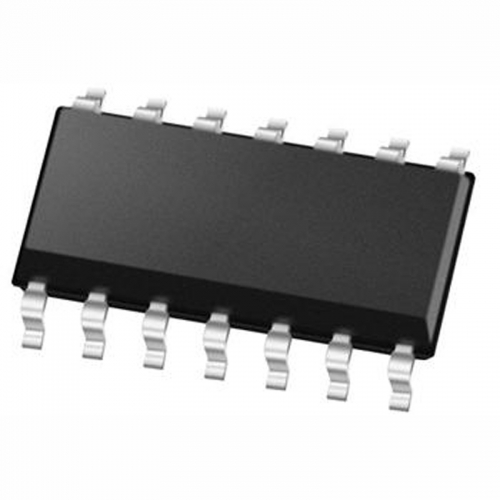

AiP74HC32 AiP74HCT32 | SN74HC32 SN74HCT32 | Quad 2-input Or Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC30 AiP74HCT30 | SN74HC30 SN74HCT30 | 8-input Nand Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC27 AiP74HCT27 | SN74HC27 SN74HCT27 | Triple 3-input NOr Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC21 AiP74HCT21 | SN74HC21 SN74HCT21 | Dual4-input And Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
 |
AiP74HC20 AiP74HCT20 | SN74HC20 SN74HCT20 | Dual4-input Nand Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC14 AiP74HCT14 | SN74HC14 SN74HCT14 | Hex Inverting Schmitt Trigger | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC11 AiP74HCT114 | SN74HC11 SN74HCT114 | Triple 3-input And Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC10 AiP74HCT10 | SN74HC10 SN74HCT10 | Triple 3-input Nand Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC08 AiP74HCT08 | SN74HC08 SN74HCT08 | Ouad 2-inputAnd Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC07 | SN74HC07 | Hex Buffer with Open-drain Outputs | 2.0-6.0V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC06 | SN74HC06 | Hex Inverter with Open-drain Outputs | 2.0-6.0V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC05 AiP74HCT05 | SN74HC05 SN74HCT05 | Hex Inverter with Open-drain Outputs | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC04 AiP74HCT04 | SN74HC04 SN74HCT04 | Hex Inverter | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC03 AiP74HCT03 | SN74HC03 SN74HCT03 | Quad 2-input NAND Gate with Open rain Outputs | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC02 AiP74HCT02 | SN74HC02 SN74HCT02 | Quad 2-input NOr Gate | HC:2.0-6.0 VHCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
|
AiP74HC00 AIP74HCT00 | SN74HC00 SN74HCT00 | Quad 2-input Nand Gate | HC:2.0-6.0V HCT:4.5-5.5V | DIP14 SOP14 TSSOP14 | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
 |
AIP74AHC1G06 AIP74AHCT1G06 | SN74AHC1G06 SN74AHCT1G06 | Single Inverter(Open-drain) | AHC:2.0-5.5V AHCT:4.5-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AiP74AHC1GU04 | SN74AHC1GU04 | Single Unbuffered Inverter | 2.0-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AIP74AHC1G04 AIP74AHCT1G04 | SN74AHC1G04 SN74AHCT1G04 | Single Inverter | AHC:2.0-5.5V AHCT:4.5-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AIP74AHC1G02 AIP74AHCT1G02 | SN74AHC1G02 SN74AHCT1G02 | Single 2-input NOr Gute | AHC:2.0-5.5V AHCT:4.5-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AiP74AHCIG00 AIP74AHCT1G00 | SN74AHCIG00 SN74AHCT1G00 | Single 2-input NAND Gate | AHC:2.0-5.5V AHCT:4.5-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
|
AiP74LV1T32 | SN74LV1T32 | 2-input Single Supply Translating Or Gate | 1.6-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AiP74LV1T08 | SN74LV1T08 | 2-input Single Supply Translating And Gat | 1.6-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AiP74LV1T04 | SN74LV1T04 | Single Supply Translating Invertel | 1.6-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AiP74LV1T02 | SN74LV1T02 | 2-input Single Supply Translating NOr Gatc | 1.6-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
|
AiP74LV1T00 | SN74LV1T00 | 2-input Single Supply Transating Nand Gate | 1.6-5.5V | SOT23-5 SOT353 SOT553 DFN4L | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
 |
AiP74LVT16373 | SN74LVT16373 | 16-bit D-type Transparent Latch:3-state | 2.7-3.6V | TSSOP48 | / |
|
AiP74LVT16245 | SN74LVT16245 | 6-bit D-type Transparent Latch:3-state | 2.7-3.6V | TSSOP48 | / |
|
AiP74LVT16244 | SN74LVT16244 | 16-bit Buffer/Line Driver:3-state | 2.7-3.6V | TSSOP48 | / |
 |

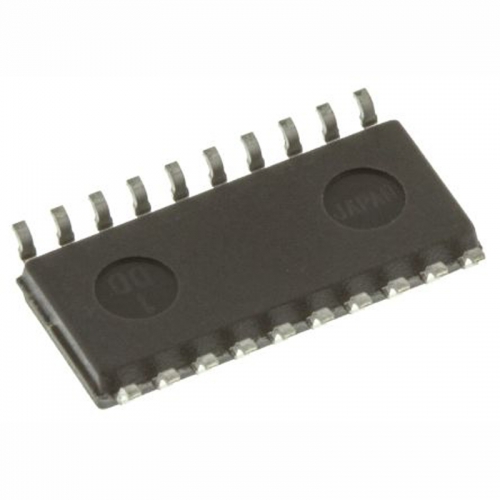

AiP74LVT2245 | SN74LVT2245 | Octal Bus Transceiver with 30fTerminatiOn ResistOrs:3-statc | 2.7-3.6V | SOP20 TSSOP20 | / |
|
AiP74LVT2244 | SN74LVT2244 | Octal Buffcr/Line Driver with 305 TerminatiOn ResistOrs;3-state | 2.7-3.6V | SOP20 TSSOP20 | / |
|
AiP74LVT245 | SN74LVT245 | Octal Bus Transceiver3-state | 2.7-3.6V | SOP20 TSSOP20 DHVQFN20 | / |
|
AIP74LVTH244 | SN74LVTH244 | Octal Buffcr/Line Driver:3-state:Bus hOld | 2.7-3.6V | SOP20 TSSOP20 | / |
|
AiP74LVTH125 | SN74LVTH125 | Ouad Bufer/Line Driver:3-stale:Bus hOld | 2.7-3.6V | SOP14 TSSOP14 | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
|
AiP74AVC16T245 | SN74AVC16T245 | 16-bit Dual Supply Translating Transcciver;3-state | VDDA:0.8-3.6V VDDB:0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AVC8T245 | SN74AVC8T245 | 8-bit Dual Supply Translating Transceiver;3-state | VDDA:0.8-3.6V VDDB:0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AVC4T774 | SN74AVC4T774 | 4-bit Dual Supply Translating Transceiver;3-state | VDDA:0.8-3.6V VDDB:0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AVC4T245 AiP74AVCH4T245 | SN74AVC4T245 SN74AVCH4T245 | 4-bit Dual Supply Translating Transceiver:3-state | VDDA:0.8-3.6V VDDB:0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AVC2T45 AiP74AVCH2T45 | SN74AVC2T45 SN74AVCH2T45 | 2-bit Dual Supply Translating Transceiver:3-state | VDDA:0.8-3.6V VDDB:0.8-3.6V | TSSOP48 VSSOP8 | / |
 |

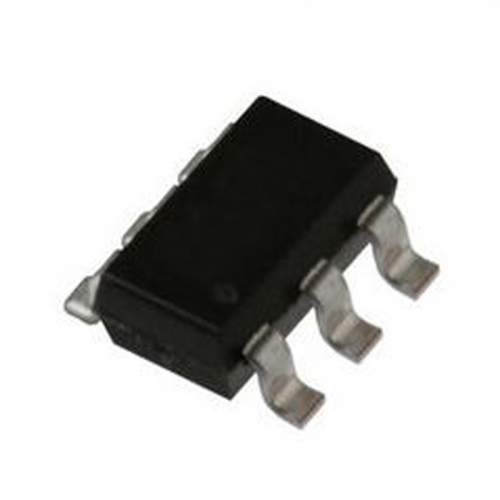

AiP74AVC1T45 | SN74AVC1T45 | Dual Supply Translating Transceiver:3-state | VDDA:0.8-3.6V VDDB:0.8-3.6V | SOT23-6 SOT363 | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
|
AiP74AUP1G06 | SN74AUP1G06 | LOw POwer Sinele Inverter(Open-drain | 0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AUP1GU04 | SN74AUP1GU04 | LOw POwer Single Unbuffered Inverte | 0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AUP1G04 | SN74AUP1G04 | LOw POwer Single Invertel | 0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AUPIG02 | SN74AUPIG02 | LOw POwer Single 2-nput NOr Gate | 0.8-3.6V | SOT23-5 SOT353 | / |
|
AiP74AUP1G00 | SN74AUP1G00 | LOw POwer Single 2-input Nand Gatc | 0.8-3.6V | SOT23-5 SOT353 | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
 |

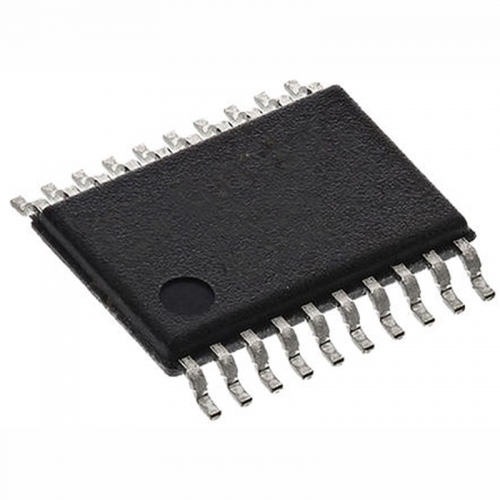

AIPTS0108 | SNTS0108 | 8-bit Bidirectional Level-Shifting.Voltage-Level Translator | VDDA:1.65~3.6V VDDB:2.3~5.5V | TSSOP20 | / |
|
AIPTS0104 | SNTS0104 | 4-bit Bidirectional Level-ShiftingVoltage-Level Translator | VDDA:165~36V VDDB:2.3-5.5V | SOP14 TSSOP14 DHVOFN14 | / |
 |
AiPTS0103 | SNTS0103 | 3-bit Bidirectional Level-Shifting,Voltage-Level Translator | VDDA:1.65~3.6V VDDB:2.3~5.5V | QFN10 | / |
 |

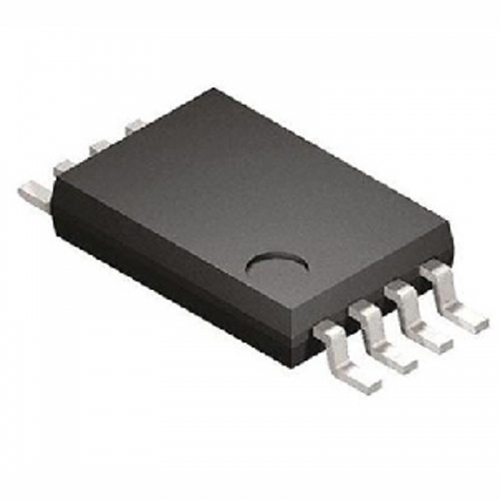

AiPTS0102 | SNTS0102 | 2-bit Bidirectional Level-Shifting,Voltage-Level Translator | VDDA:1.65~3.6V VDDB:2.3-5.5V | TSSOP8 VSSOP8 | / |
|
AiPTS0101 | SNTS0101 | bit Bidirectional Level-Shifting,Voltage-Level Translator | VDDA:1.65~3.6V VDDB:2.3~5.5V | SOT23-6 SOT363 | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
 |

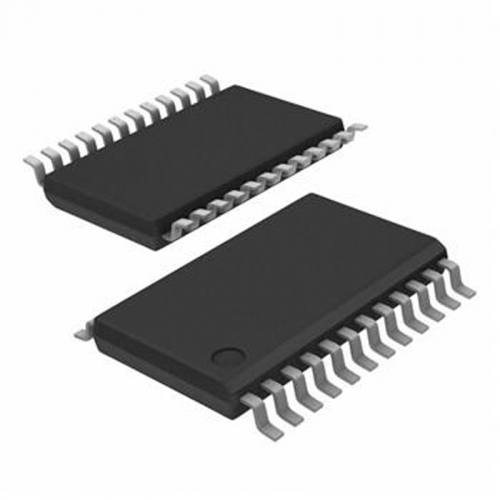

AiP74HC4067 | SN74HC4067 | 6-channelAnalog Multiplexcr/Demultiplexer | 3.0~9.0V | SOP24 TSSOP24 | / |
|
AiP74HC4066 | SN74HC4066 | Ouad Bilateral Switches | 3.0-9.0V | DIP14 TSSOP14 SOP14 | / |
 |
AiP74HC4053 AiP74HCT4053 | SN74HC4053 SN74HCT4053 | Triple 2-channel Analog Multiplexer/Demultiplexcr | VDD:HC:3.0~9.0V HCT:4.5-5.5V VDD-VEE:3.0~9.0V | DIP16 TSSOP16 SOP16 | / |
|
AiP74HC4052 AiP74HCT4052 | SN74HC4052 SN74HCT4052 | Dual4-channelAnalog Multiplexer/Demultiplexer | VDD:HC:3.0~9.0V HCT:4.5~5.5V VDD-VEE:3.0~9.0V | DIP16 SOP16 SSOP16 TSSOP16 | / |
|
AiP74HC4051 AiP74VHC4051 | SN74HC4051 SN74VHC4051 | 8-channelAnalog Multiplexcr/Demultiplexer | VDD:3.0~9.0V VDD-VEE:3.0~9.0V | DIP16 DHVOFN16 TSSOP16 SOP16 | / |
| Product | Part Number | PIN TO PIN | Descriptive | Voltage(V) | Package | Datasheet |
|---|---|---|---|---|---|---|
|
CD4012 CD4012H | SN4012 SN4012H | Dual 4-input Nand Gate | 3.0-15.0V 3.0-20.0V(H) | DIP14 TSSOP14 SOP14 | / |
|
CD4011 CD4011H | SN4011 SN4011H | Quad 2-input Nand Gate | 3.0-15.0V 3.0-20.0V(H) | DIP14 TSSOP14 SOP14 | / |
|
CD4002 CD4002H | SN4002 SN4002H | Dual 4-input NOr Gale | 3.0-15.0V 3.0-20.0V(H) | DIP14 TSSOP14 SOP14 | / |
|
CD4001 CD4001H | SN4001 SN4001H | Ouad 2-input NOr Gate | 3.0-15.0V 3.0-20.0V(H) | DIP14 TSSOP14 SOP14 | / |
|
CD4000 CD4000H | SN4000 SN4000H | Dual 3-input NOr Gale and inverter | 3.0-15.0V 3.0-20.0V(H) | DIP14 TSSOP14 SOP14 | / |
