Ferroelectric memory
Ferroelectric memory
FRAM is a non-volatile memory that utilizes the properties of ferroelectric materials to store data. Ferroelectric materials have the ability to reversibly change the direction of their polarization in response to an electric field and can therefore be used to store digital information. Its ferroelectricity of ferroelectrics is characterized by non-volatility, low power consumption, and fast reading of data. GXSC has mass-produced ferroelectric storage devices with capacities of 128Kb and 2Mb.

Product | Product family | Part Number | PIN TO PIN | Descriptive | Package | Datasheet |
---|---|---|---|---|---|---|
![]() |

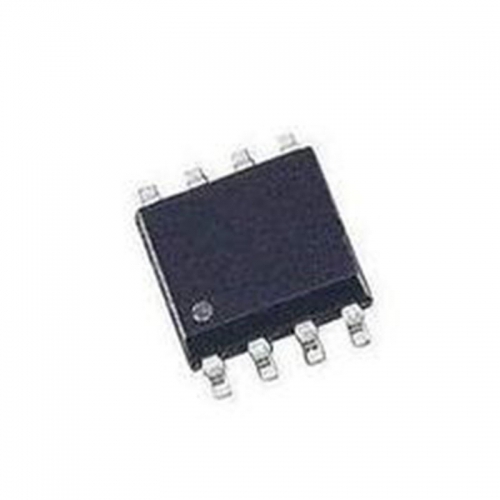

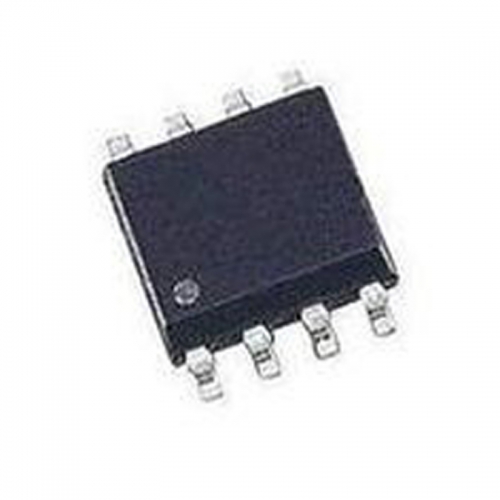

FRAM | GX25C512 | MB85RS512 FM25V512 | interfaces:SPI;Capacity:512Kb;Operating voltage:2.7V-3.6V;Temp:-40℃ to 85℃ | DIE/SOP-8 | / |
![]() |
FRAM | GX25C256 | MB85RS256/FM25V256 | interfaces:SPI;Capacity:256Kb;Operating voltage:2.7V-3.6V;Temp:-40℃ to 85℃ | DIE/SOP-8 | / |
![]() |
FRAM | GX24C64 | MB85RC64 FM24C64 | interfaces:IIC;Capacity:64Kb;Operating voltage:2.7V-3.6V;Temp:-40℃ to 85℃ | DIE/SOP-8 | |
![]() |
FRAM | GX24C512 | MB85RC512 FM25V05 | interfaces:IIC;Capacity:512Kb;Operating voltage:2.7V-3.6V;Temp:-40℃ to 85℃ | DIE/SOP-8 | |
![]() |
FRAM | GX85RS128 | MB85RS128B FM25V01A-GTR | interfaces:SPI;Capacity:128Kb;Operating voltage:2.7V-3.6V;Temp:-40℃ to 85℃ | DIE/SOP-8 | |
![]() |
FRAM | GX85RS2MC | MB85RS2MT FM25V20A | interfaces:SPI;Capacity:2M;Operating voltage:2.7V-3.6V;Temp:-40℃ to 85℃ | DIE/SOP-8 |
